image square Framedrillingmachine
Mod 160

Universal solid wood boring machine for frame constructions. Developed for efficient drilling of entry doors, lifting doors, block frames, etc. and all other architectural products. For these work areas, the dowel connection has proven to be the most efficient to ensure a strong, simple and precise connection. The Mod. 160 can carry out all common drillings in one operation. The machine for medium and large series production of frame elements.

Framedrillingmachine - GANNOMAT Mod 160

image grey line

image info button Presentation / Features and Benefits / Options

Short introduction:
Universal application: frames, entry doors, window constructions, etc. e.g. for frame doors, lifting doors, block frames, window elements and all other architectural products
Drilling supports in turnable and fixed version

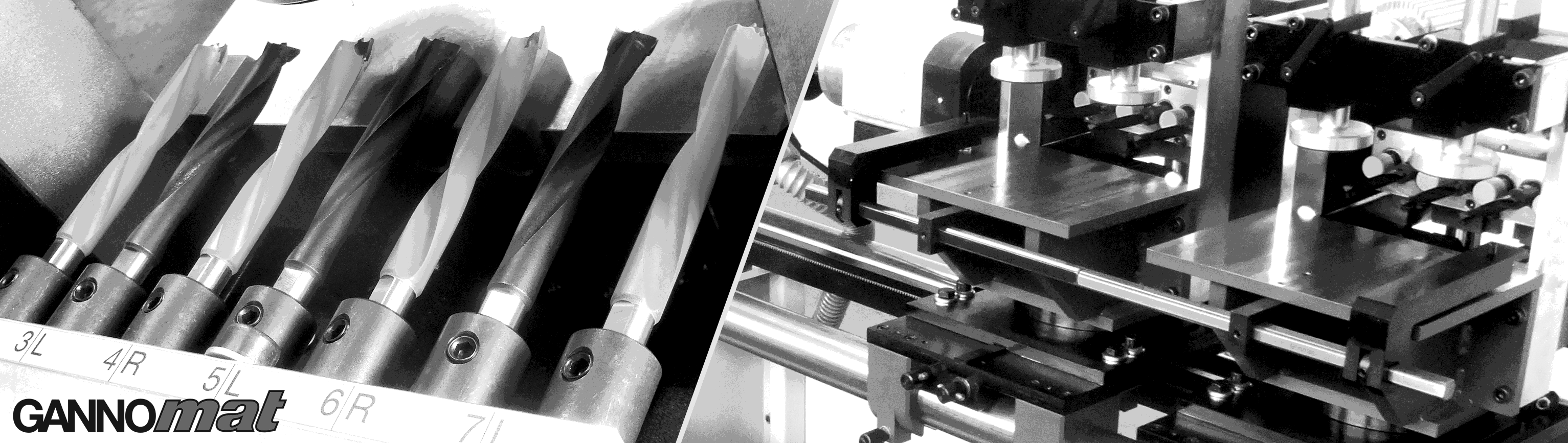

Drilling supports with multi spindle drill heads
Standard quick change drill chucks for easy tool change
Chip-discharge program for drilling deep holes (option)
2 strong clamping cylinders for each drilling supports
Easy and accurate adjustment of the boring units by scale control through hand crank with rack and pinion drive along the X-axis
Height adjustment by digitally controlled hand crank
Drilling depth adjustment by scale
Each drilling support can be switched on or off individually
Ideal stop system for frame dowelling

image grey line

image info button Video

> Youtube-Video-Link <

image red line

image info button Configurator and contact for your frame drilling machine
from Gannomat
image small square  Configurator for your machine and your applications

Mod 160

Based on the many options and applications we are pleased to advise you personally so that we can arrange and discuss the optimal machine for you.
