image square Lift table & Working table & Multi-Function-Table

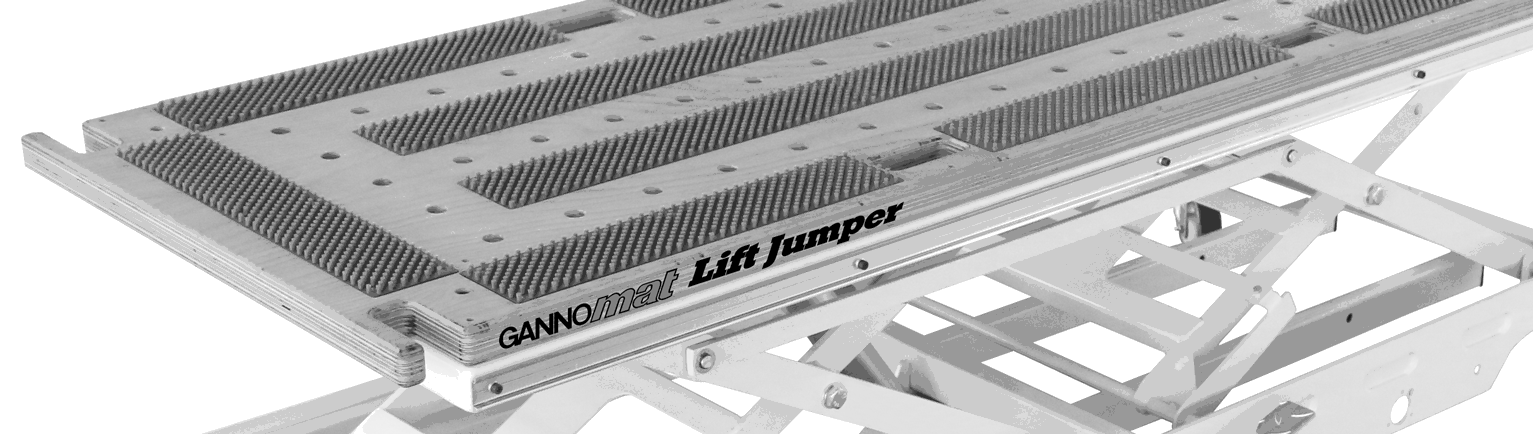

Lift Jumper

Mobile multi function lifting and elevating table. Optimized height adjustable workplace in the field of hardware assembly, cabinet assembly and case clamp, developed for practical application for ergonomic workplaces and for healthier and therefore more efficient users.

Lift table - GANNOMAT Lift Jumper   Lift table - GANNOMAT Lift Jumper

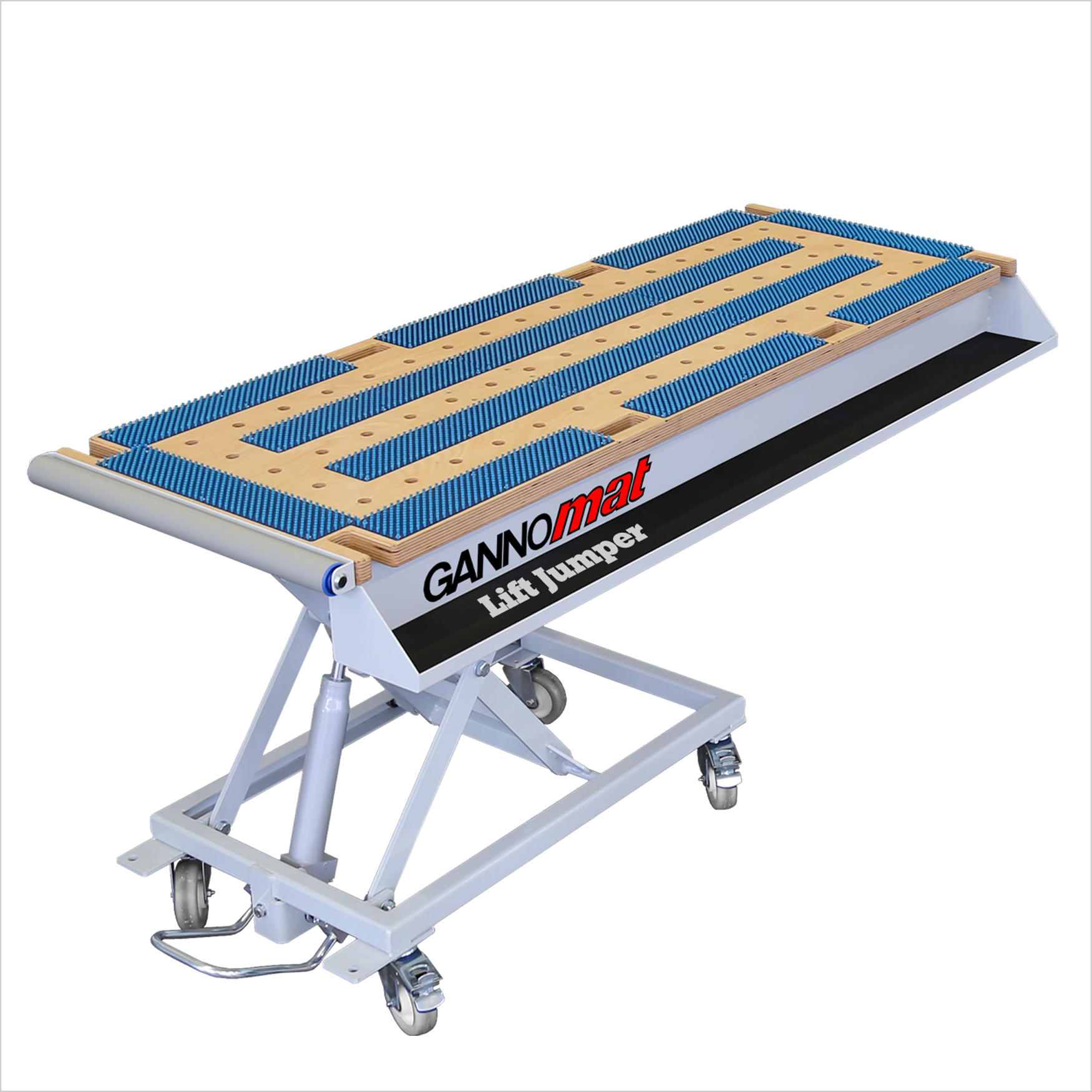

Lift Jumper X1   Lift Jumper X2

Lift table - GANNOMAT Lift Jumper   Lift table - GANNOMAT Lift Jumper

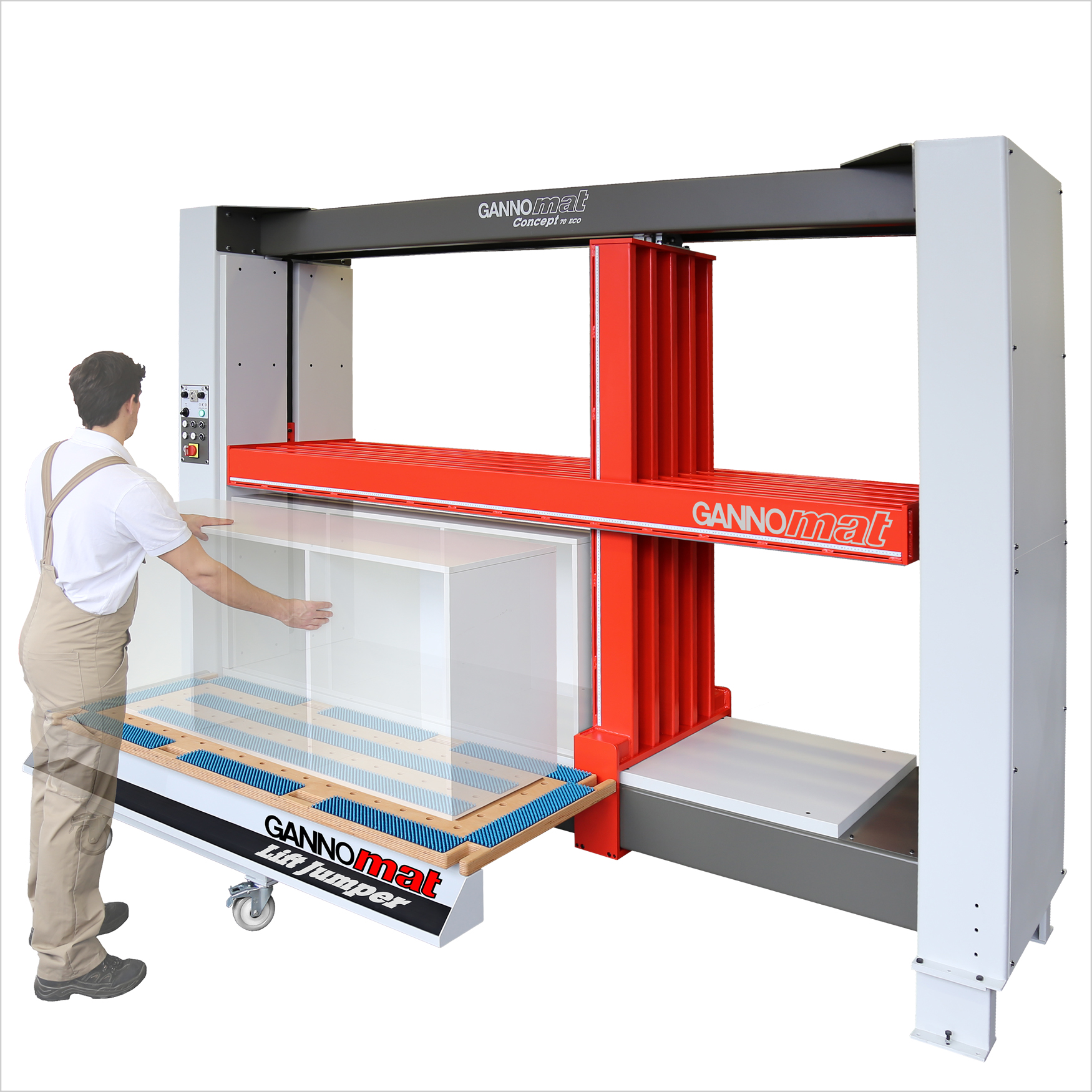

Easy loading and unloading of a case clamp   Tilt up of a case good

Lift table - GANNOMAT Lift Jumper   Lift table - GANNOMAT Lift Jumper

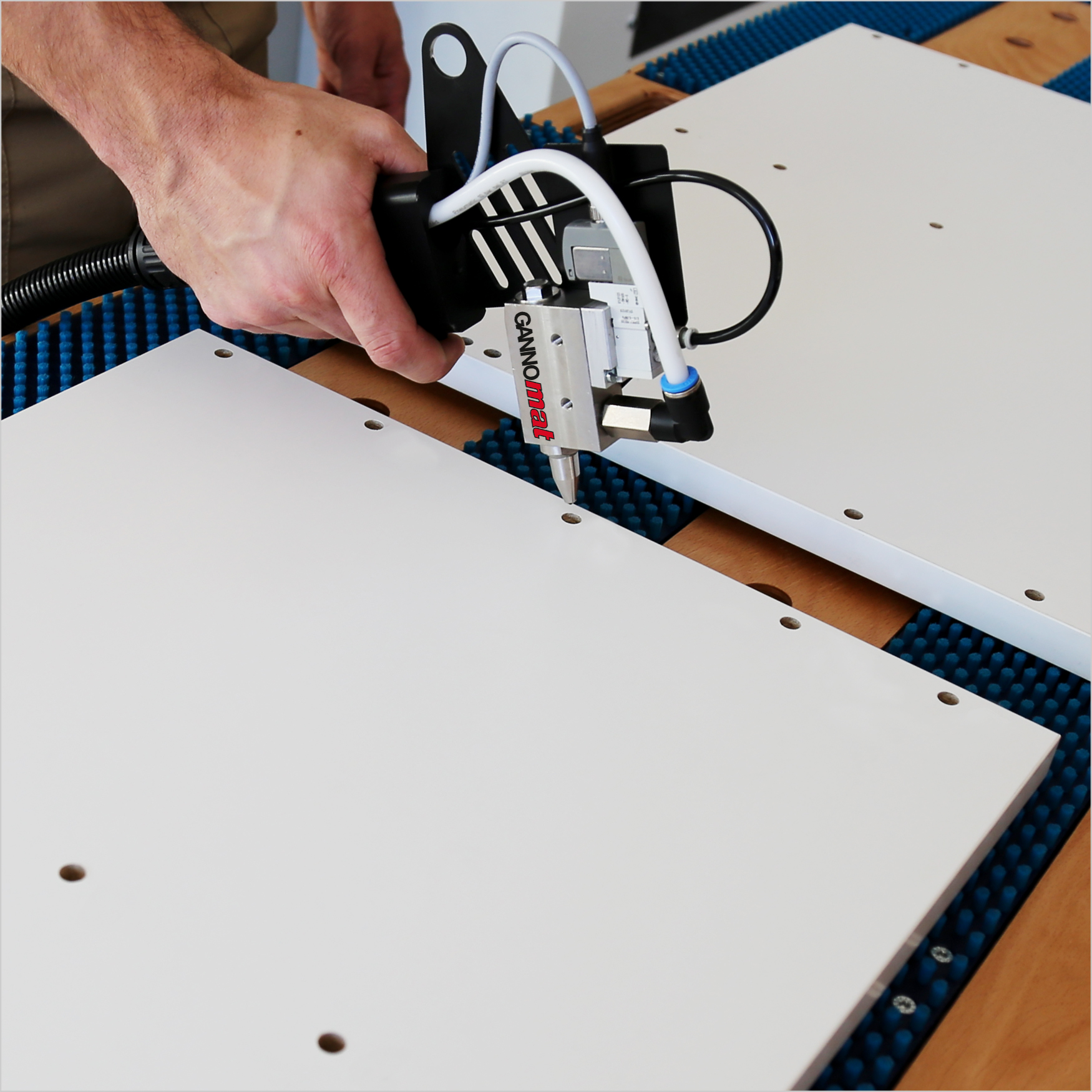

Gluing of cabinet parts   Working table for fronts

Lift table - GANNOMAT Lift Jumper   Lift table - GANNOMAT Lift Jumper

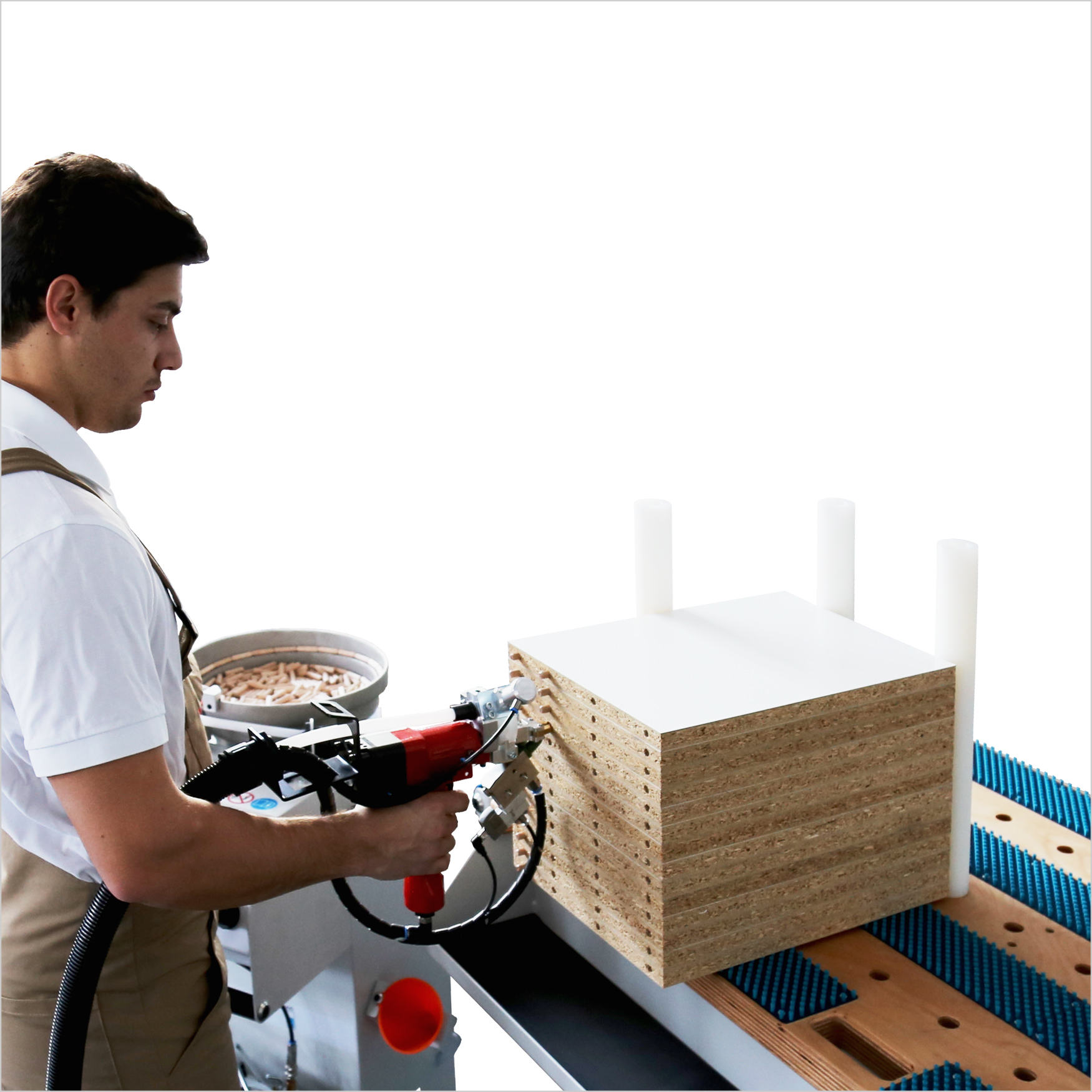

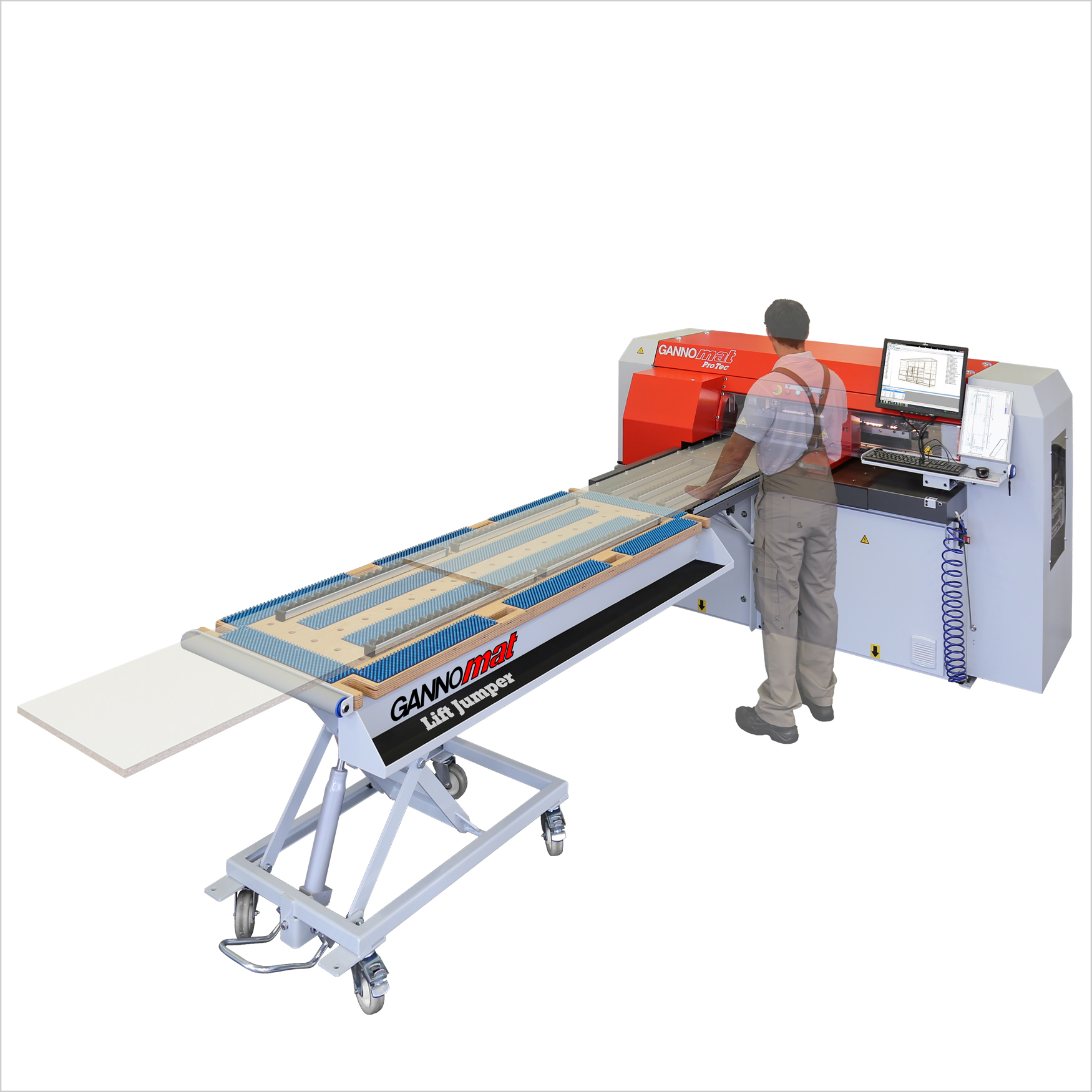

Working table for glue and dowel insertion   CNC machining center loading and unloading

image grey line

image info button Presentation / Features and Benefits / Options

Short introduction: ...smooth-running foot pump hydraulics
Lift Jumper X1 & Lift Jumper X2
Stepless height adjustable lifting table
Maximum stability and simple mobility
Robust through the solid frame
Versatile and mobile through large wheels
Easy to use and smooth-running foot pump hydraulics
Versatile and flexible to use
Quick and comfortable
Flexible transport and lifting support
Gentle brush surface
4 pieces ball bearing castors, 2 with brakes, roll diameter 125 mm,
for easy moving of the lifting table
Hole grid for attachment of auxiliary constructions
Grip recesses for easy moving the multifunction lifting table

Short introduction: ...electric height adjustment
Lift Jumper X2e
Mobile scissor lift table with electro-hydraulic lift and height adjustment
Internal charger for easy and location-independent charging of the rechargeable battery
Mobile control element with magnets for individual attachment to metal surfaces
Increased user friendliness through hand buttons for lifting and lowering at the control unit
Scissor lift table with ergonomic working height at the push of a button
Fast lifting and lowering without physical effort
Simple height correction with a push of a button for frequently changing of working heights
Safe and comfortable working
Plug-and-play (no assembly), completely pre-assembled delivery, so immediately ready for use

Greatest flexibility with a high profitability and universal application areas:

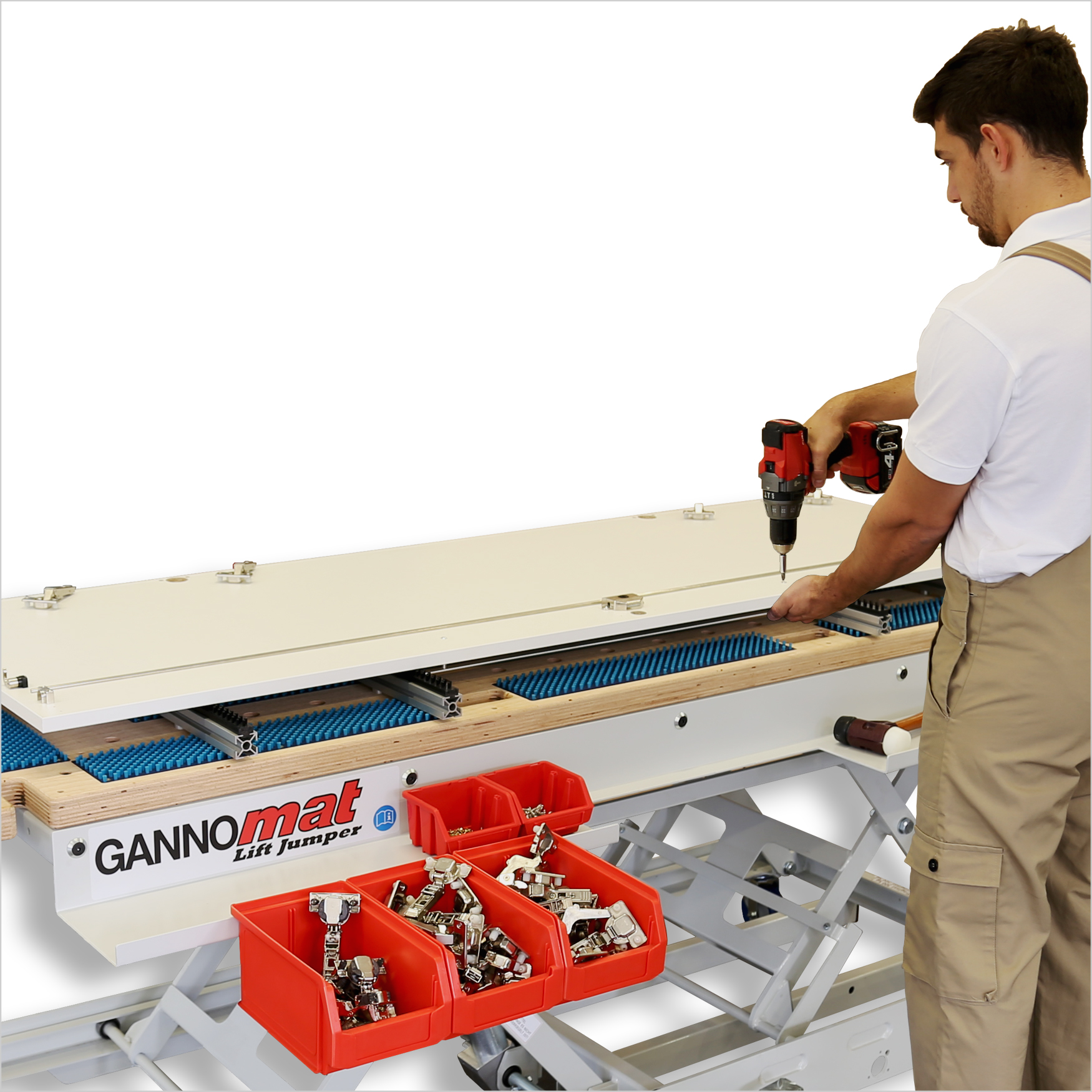

Hardware mounting table: Pre-mounting table for assembling drawer guides, hinge mounting plates, handles, locks, glides for height adjustable feets, etc. at case good parts
Gluing table: Working table for gluing of dowel holes and grooves at case good parts
(e.g. with Gannomat Leimfix, Gannomat Injecta)
Working table for glue and dowel insertion (e.g. with Gannomat Selekta)
Pre- and assembling table for assembling of case goods, drawers, etc.
Mounting support specifically for cabinets
Rotating table to rotate and orient the case goods
Loading and unloading support of case clamps
Tilt-up of case goods
Loading and unloading support of machines like through feed cnc machining center
(e.g. Gannomat ProTec)
Assembly table
Machinery equipment vehicle, storage assistance, stacking cart or additional workspace
Working tables in a case good assembly line
Run-out-table at case good assembly lines
And many other areas of application

System benefits:
One person can assemble and move (more) small and large case goods
Through quality brush plates also heavy case goods can be easy positioned
Gentle to case goods and single parts by supports with quality brush plates
Case goods and parts are protected from chips, dirt, glue residues, etc. by raised quality brushes
Hole grid for attachment of auxiliary constructions, like e.g. roller conveyors, holding and clamping arrangement
Quick and easy height adjustable work table
Accessible from all sides for easy cabinet assembly
Through grip recesses on all sides the Lift Jumper can be moved easy from all sides
Flexible workplace through moveable working table
Fast stepless height adjustment, the user is working in an optimum posture
No energy supply (electricity, air, ...) is required
Modern, functional and ergonomically designed workplace (manufacturing facility)
Quick and easy modification of the working table by selecting the options for various tasks
Sturdy and solid base frame
Can be used as pre-assembly table, loading as well as unloading table (at the front or back of a case clamp), etc.
The Lift Jumper can be also useful and timesaving used at other machines in the production

Ergonomic and economic advantages:
Increased productivity by pleasant work, e.g. through optimal and ergonomic working table height therewith reducing fatigue and higher job satisfaction
Higher product quality through less defective goods by simpler and gentler workpiece and case good handling
Increased safety at the workplace herewith less accidents and injuries and herewith less absence due to illness
