image square Case Clamp
Concept Easy

The Concept Easy is the ideal assembly support for dowel construction at the case goods production as well as at drawer production.


Presentation image info button
Features and Benefits image info button
Options image info button
Video image info button
Configurator and Contact image info button

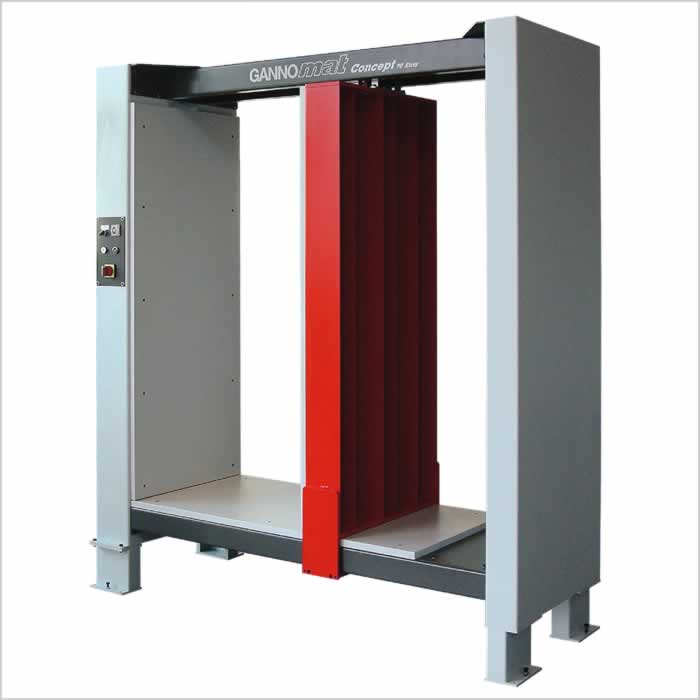

Case Clamp - GANNOMAT Concept Easy

image red line

Short introduction:
Small footprint requirement, less than 1,8 m2
Potentiometer for stepless adjustable pressing force
Pressing force min. 300 daN (kg)
Pressing force max. 2200 daN (kg)
3 Pressing velocities and adjustment rates
5 /10 / 25 mm/sec. (with fine positioning / creep feed)
Adjustable clamping cycle time with automatic opening

Universeller Einsatzbereich:
Case good e.g. for furniture and cabinets
Drawers
Pressing of several case goods / drawers

Advantages:
Electromechanical case clamp with frequency-controlled geared motor
Long service life through proven and high-quality components
Construction in solid and robust design
Space-saving design
Case good clamping = simple + fast + efficient + flexible + precise + professional
Simple through easy and practical control panel
Fast through clamping beam positioning speed of up to 50 mm/sec (option)
Efficient through precise pressing of different case good sizes
Flexible through adjustable parameters such as, pressing force, pressing time, travel speeds
Precise through accurate angle pressing of furniture case goods and drawers
Professional production of case goods and drawers using modern case clamp

Options:
Working height as required
Adjustment speed up to 50 mm/sec
Case good measurement through sensors for automatic switching between adjustment / pressing speed
Pneumatic top clamping cylinders from top

Info:
  GANNOMAT Concept case clamp
  The Gannomat Concept case clamps are the ideal assembly support for dowel construction at the case goods as well as drawer production at the furniture production.
  This multi-purpose case clamp is specially designed for efficient and flexible use to save time and labour in medium and large production plants. The clamping pressure is applied across the entire beam for clamping of case goods, drawers, etc..
  A Gannomat case clamp is suitable for the production of any kind of cabinets, case goods and drawers, and offers all advantages of a well-equipped case clamp, adapted to the production of just in time production with batch size 1, as well as small, medium and large volumes. A quick assembling and pressing of furniture is given and is featured by a space saving layout design, with makes the integrated into production sites easy.
  Gannomat Concept case clamps are designed for a professional pressing of case goods. The case clamp can press different sizes of cabinets with an automatic detection of the furniture size through an optical system for the automatic changeover of the adjustment / pressing speed (option).
